This circuit is an oxygen sensor for car. The oxygen sensor simulator as built on a protoboard. Note the cigarette lighter plug used for power source. The adjustment knob is at the left, and the switch is on the right. The red indicator LED is in the middle. Only use red, because the voltage drop of the LED is part of the circuit!The schematic diagram for the simulator. Closing the switch engages the simulator. Turning the knob clockwise simulates a lean condition, turns the LED off, and the car should start running rich to compensate. The big "V" is a digital voltmeter (not shown in the pictures). Using a smaller value for C1, perhaps 4.7 uF, will make the circuit oscillate faster and might be more like a real oxygen sensor (a new sensor switches more often than an old one).

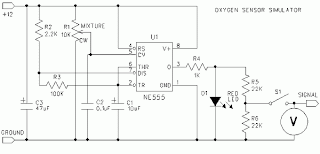

The schematic diagram for the simulator. Closing the switch engages the simulator. Turning the knob clockwise simulates a lean condition, turns the LED off, and the car should start running rich to compensate. The big "V" is a digital voltmeter (not shown in the pictures). Using a smaller value for C1, perhaps 4.7 uF, will make the circuit oscillate faster and might be more like a real oxygen sensor (a new sensor switches more often than an old one).
The schematic diagram of the adapter cable and oxygen sensor. Note the heater is shown as a resistor, mine measured about 7 ohms.
